Star Density Unwrapping

This tutorial demonstrates the usage of circle_bundles in a situation where the underlying fiber bundle model has fiber \(\mathbb{S}^{1}\coprod\mathbb{S}^{1}\). In general, the structure group for such a bundle \(\xi\) is \(O(2)\rtimes\Sigma_{2}\), and \(\xi\) lifts to an ordinary circle bundle over a double cover \(\widetilde{B}\) of the base space \(B\), determined by a ‘permutation class’ in \(H^{1}(B;\Sigma_{2})\).

We generate a dataset by applying random \(SO(3)\) rotations to the vertices of a star pyramid mesh with 5-fold rotational symmetry, then constructing 3D densities from the rotated meshes as in the previous example. Using the same \(\mathbb{RP}^{2}\) base projection as was used there, the data over each neighborhood in \(\mathbb{RP}^{2}\) in this case is concentrated around a \(\textit{pair}\) of disjoint circles. As one might expect, the underlying bundle can be lifted to an ordinary orientable circle bundle over \(\mathbb{S}^{2}\) – one can show that this bundle has Euler number \(\pm 10\).

To capture the global structure, we use fiberwise clustering tools from circle_bundles to separate the data over each fiber into component circles and verify the global connectivity. We then lift the base projections to \(\mathbb{S}^{2}\) and compute characteristic classes.

import numpy as np
import matplotlib.pyplot as plt

import circle_bundles as cb

First, generate the dataset:

#Create the template triangle mesh
mesh = cb.make_star_pyramid(n_points = 5, height = 1)

n_samples = 10000
rng = np.random.default_rng(0)
R = cb.sample_so3(n_samples, rng=rng)[0]  #generate a random sample of SO(3)

mesh_data = cb.get_mesh_sample(mesh, R)  #generate the mesh dataset for visualization

grid_size = 32  #density resolution
sigma = 0.05

data = cb.make_rotated_density_dataset(
    mesh,
    R,
    grid_size = grid_size,
    sigma = sigma,
)


#Create visualization functions for triangle meshes and 3D densities
vis_mesh = cb.make_star_pyramid_visualizer(mesh)
vis_density = cb.make_density_visualizer(grid_size=grid_size)

Densities are stored as vectors of length \(32^{3} = 32768\). For visualization, the original meshes are stored as vectors of length \(11\times 3 = 33\).

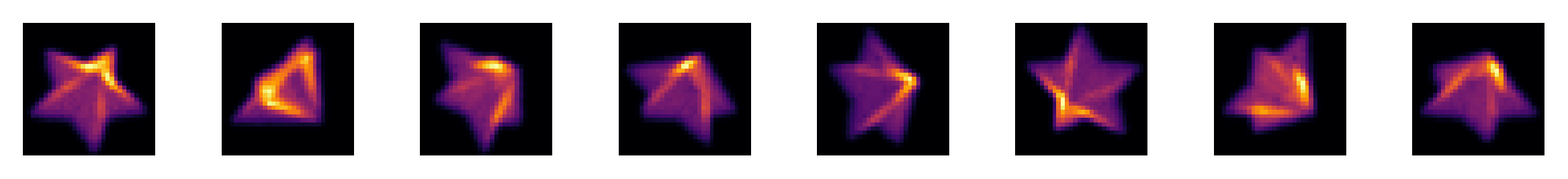

View a small sample of the data, represented by 2D projections of the 3D densities and also by the triangle meshes used to produce the densities.

n_to_show = 8
fig = cb.show_data_vis(data,
                       vis_density,
                       max_samples = n_to_show,
                       n_cols = n_to_show,
                       sampling_method = 'first')
plt.show()


fig = cb.show_data_vis(mesh_data,
                       vis_mesh,
                       max_samples = n_to_show,
                       n_cols = n_to_show,
                       pad_frac = 0.3,
                       sampling_method = 'first')
plt.show()
../../_images/b23bfda6c82c17b22bba0157a73fc99b2b1f6cba44dd09319982ef0b82a293b3.png ../../_images/2accb8a100cc5fef4f4971c6e3b33b96e92edce773aa1910d202d161fe293ad5.png

\(\textbf{Note:}\) 2D projections of the 3D densities are computed by summing intensities along the z-axis, shown here as perpendicular to the screen. Reflecting a pyramid mesh through the z-axis produces a very different 3D density, but the 2D projections appear the same. On the other hand, two pyramid meshes which differ by a rotation in the symmetry group yield indistinguishable 3D densities – this is a genuine symmetry of the dataset.

Now, compute the base projections of the densities to \(\mathbb{RP}^{2}\) (represented as unit vectors in the upper hemisphere of \(\mathbb{S}^{2}\)):

base_points = cb.get_density_axes(data)

Construct an open cover of \(\mathbb{RP}^{2}\) using a collection of nearly equidistant landmark points (see API reference):

n_landmarks = 60
rp2_cover = cb.get_rp2_fibonacci_cover(base_points, n_pairs = n_landmarks)

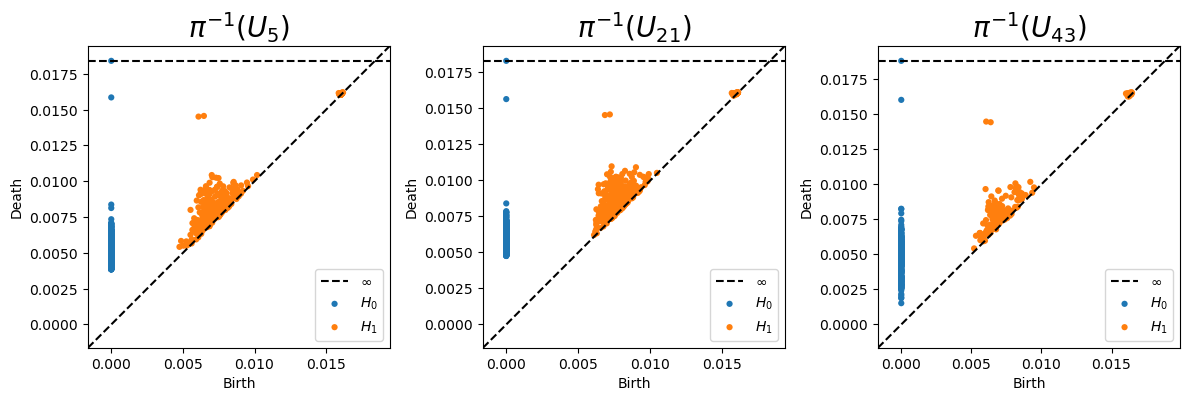

Compute a persistence diagram for the data in each set \(\pi^{-1}(U_{j})\):

fiber_ids, dense_idx_list, rips_list = cb.get_local_rips(
    data,
    rp2_cover.U,
    to_view = [5,21,43],
    maxdim=1,
    n_perm=500,
    random_state=None,
)

fig, axes = cb.plot_local_rips(
    fiber_ids,
    rips_list,
    n_cols=3,
    titles='default',
    font_size=20,
)
/Users/bradturow/anaconda3/envs/tda_env/lib/python3.10/site-packages/ripser/ripser.py:253: UserWarning:

The input point cloud has more columns than rows; did you mean to transpose?

/Users/bradturow/anaconda3/envs/tda_env/lib/python3.10/site-packages/ripser/ripser.py:253: UserWarning:

The input point cloud has more columns than rows; did you mean to transpose?

/Users/bradturow/anaconda3/envs/tda_env/lib/python3.10/site-packages/ripser/ripser.py:253: UserWarning:

The input point cloud has more columns than rows; did you mean to transpose?
../../_images/708f32c7186009f02931c1b185bdfb31d22380fff0e7141c7e3978d5f463680d.png

Observe that each set shows a pair of persistent classes in dimensions 0 and 1, suggesting the presence of a pair of local circular clusters in each set. This reflects the fact that the underlying pyramid mesh does not have additional 2-fold symmetry about its rotational axis of symmetry.

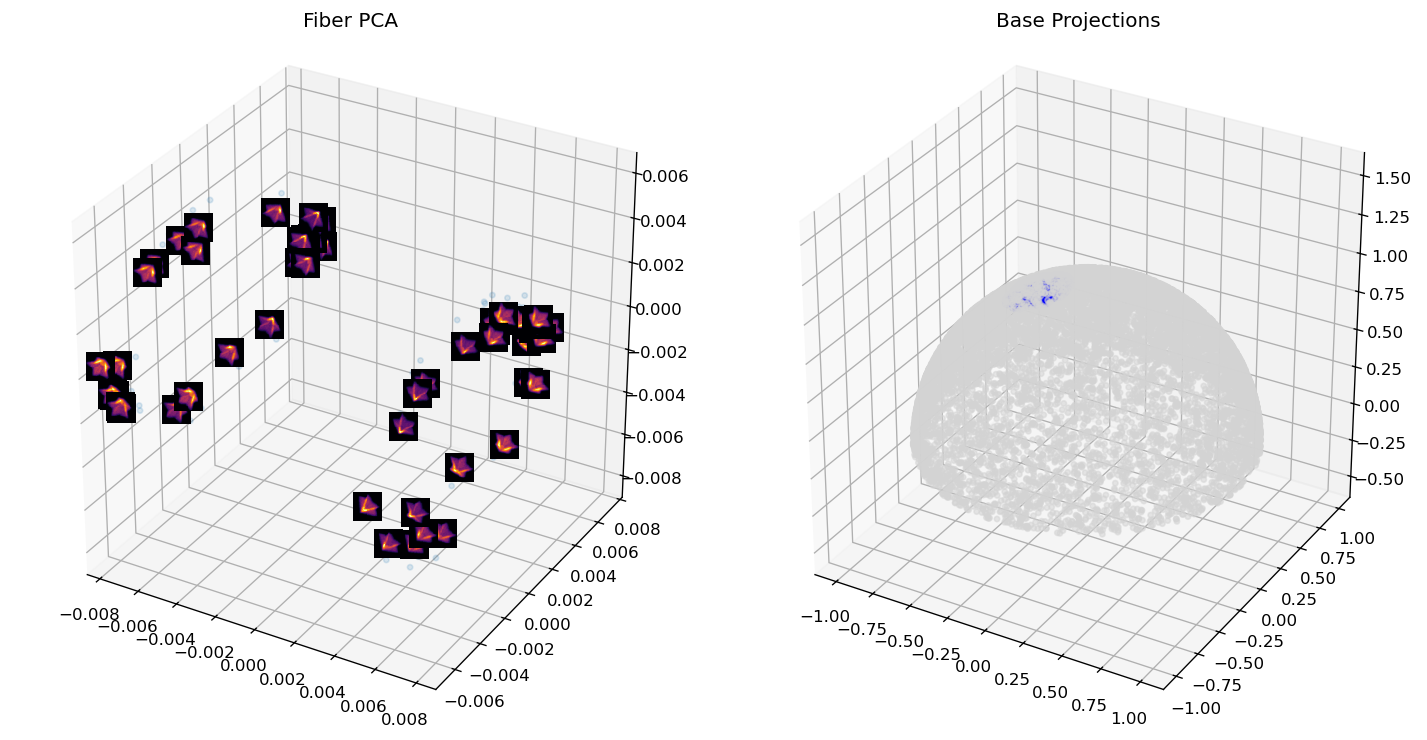

Show a visualization of a ‘fat fiber’ of the projection map, with base projections represented as points in the upper hemisphere:

center_ind = 149
r = 0.2
dist_mat = cb.RP2UnitVectorMetric().pairwise(X=base_points)
nearby_indices = np.where(dist_mat[center_ind] < r)[0]

fiber_data = data[nearby_indices]
vis_data = mesh_data[nearby_indices]


fig = plt.figure(figsize=(12, 6), dpi=120)
ax1 = fig.add_subplot(1, 2, 1, projection="3d")
ax2 = fig.add_subplot(1, 2, 2, projection="3d")

# PCA labeled with density projections
cb.fiber_vis(
    fiber_data,
    vis_func=vis_density,
    max_images=50,
    zoom=0.05,
    ax=ax1,
    show=False,
)
ax1.set_title("Fiber PCA")

# Base visualization
cb.base_vis(
    base_points,
    center_ind,
    r,
    dist_mat,
    use_pca=False,
    ax=ax2,
    show=False,
)
ax2.set_title("Base Projections")

plt.tight_layout()
plt.show()
../../_images/39179311f65e8f6bf94ee7b2341409e7d70437fb4046d4965de2f7d95f79814d.png

Use fiberwise clustering to separate the data in each open set into its two components and track the global connected components:

eps_values = 0.0125*np.ones(len(rp2_cover.U))   #Choose an epsilon value based on 0-D persistence diagrams
min_sample_values = 5*np.ones(len(rp2_cover.U))

components, G, graph_dict, cl, summary = cb.fiberwise_clustering(data,
                                                              rp2_cover.U,
                                                              eps_values,
                                                              min_sample_values)

cluster_counts = summary['fiber_component_counts']
print(f'Total number of local clusters: {np.sum(cluster_counts)}')
print(f'Min number of local clusters per fiber: {np.min(cluster_counts)}')
print(f'Max number of local clusters per fiber: {np.max(cluster_counts)}')

print(f'Total number of unclustered points: {np.sum(components == -1)}')
print(f'Total number of global components: {len(np.unique(components[components != -1]))}')
Total number of local clusters: 120
Min number of local clusters per fiber: 2
Max number of local clusters per fiber: 2
Total number of unclustered points: 0
Total number of global components: 1

Observe that the data in each fiber was separated into two distinct clusters, but globally, the clusters organize into a single connected component. This is expected, because the underlying model for the dataset has a single connected component (in particular, the total space is homeomorphic to the lens space \(L(10,1)\)).

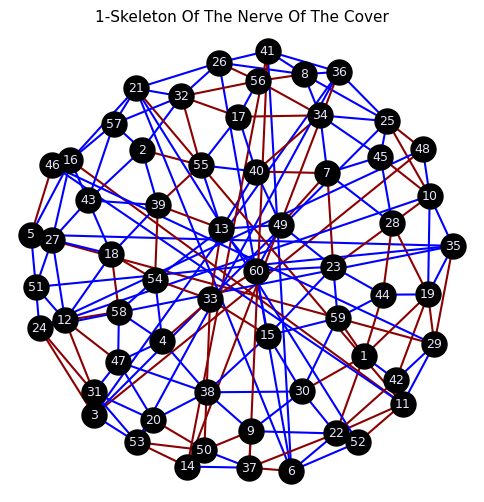

Show the 1-skeleton of the nerve of the cover labeled by the \(\Sigma_{2}\)-permutation cocycle – red edges indicate that the local +/- cluster labels are reversed on an overlap, where as blue edges indicate that the local +/- cluster labels agree.

signs = cb.get_cocycle_dict(G)
signs_O1 = {edge:(-1) ** signs[edge] for edge in signs.keys()}

dist_mat = cb.RP2UnitVectorMetric().pairwise(X = rp2_cover.landmarks, Y = base_points)

node_labels = [f"{i+1}" for i in range(rp2_cover.landmarks.shape[0])]

fig, axes = cb.nerve_vis(
    rp2_cover.landmarks[:,:2],
    U = rp2_cover.U,
    cochains={1:signs_O1},
    base_colors={0:'black', 1:'black', 2:'pink'},
    cochain_cmaps={1:{1: 'blue', -1:'darkred'}},
    opacity=0,
    node_size=18,
    line_width=1.5,
    node_labels=node_labels,
    fontsize=9,
    font_color='lavender',
    title='1-Skeleton Of The Nerve Of The Cover'
)

plt.show()
../../_images/546e775a0d54d7eef10c59983e5b5b969b3769363bbf3212783a6d25851c5914.png

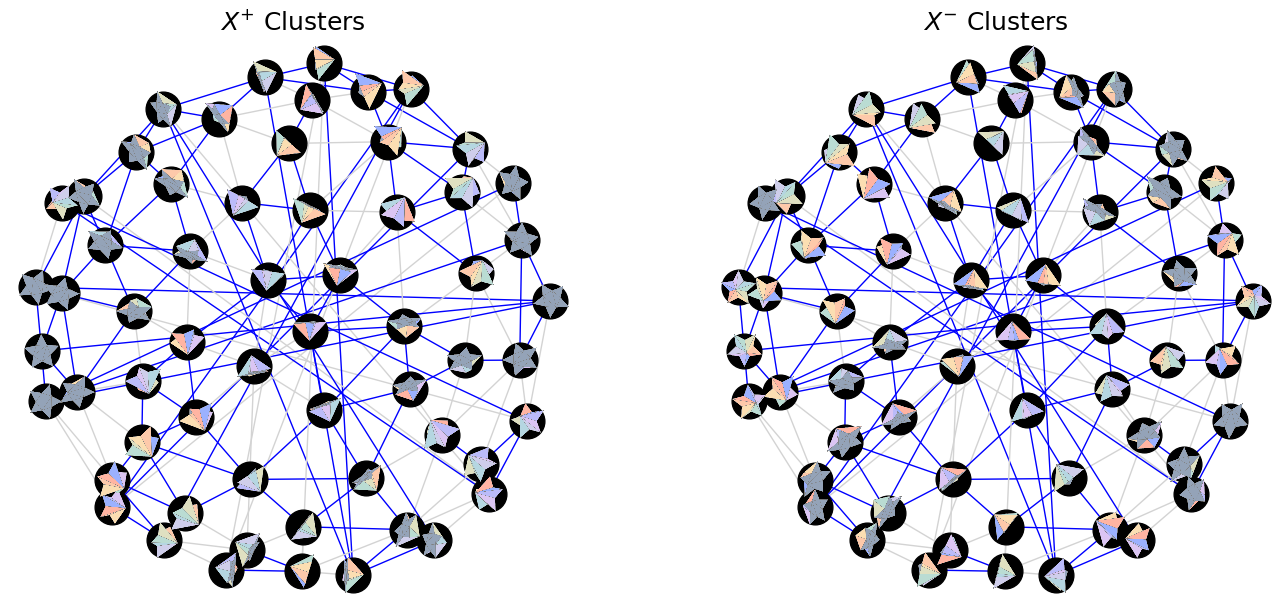

Show a visualization of the local clusters. For readability, each cluster is labeled by the pyramid mesh underlying a representative 3D density.

fig, axes = plt.subplots(1, 2, figsize=(14, 6), constrained_layout=True)

for ax, g in zip(axes, [0, 1]):
    sample_inds = []

    # Choose a representative for each cluster with label g
    for node in G.nodes():
        (j, k) = node
        if k == g:
            node_inds = cl[j] == k
            min_idx_local = np.argmin(dist_mat[j, node_inds])
            min_index = np.where(node_inds)[0][min_idx_local]
            sample_inds.append(min_index)

    sample_inds = np.array(sample_inds, dtype=int)

    sample_mesh_data = mesh_data[sample_inds]
    sign = "+" if g == 0 else "-"
    cb.nerve_vis(
        rp2_cover.landmarks[:,:2],
        U = rp2_cover.U,
        cochains={1: signs_O1},
        base_colors={0: "black", 1: "black", 2: "pink"},
        cochain_cmaps={1: {1: "blue", -1: "lightgray"}},
        node_size=25,
        line_width=1,
        node_labels=None,
        fontsize=16,
        font_color="white",
        vis_func=vis_mesh,
        data=sample_mesh_data,
        image_zoom=0.09,
        title = rf"$X^{{{sign}}}$ Clusters",
        ax=ax,
        show=False,
    )
fig.savefig('/Users/bradturow/Desktop/Circle Bundle Code/Figures/cluster_graphs.pdf', dpi=300, bbox_inches="tight")

plt.show()
../../_images/e988718f04385e01ffe48f2f174c9ad63c62de4107f90719e538c69bbfca82d4.png

Use the local cluster labels and interchange data on overlaps to lift the base map from \(\mathbb{RP}^{2}\) to \(\mathbb{S}^{2}\):

lifted_base_points = cb.lift_base_points(G, cl, base_points)

n_landmarks = 120  #Use more base points this time to compute the local coordinates

s2_cover = cb.get_s2_fibonacci_cover(lifted_base_points, n_vertices = n_landmarks)

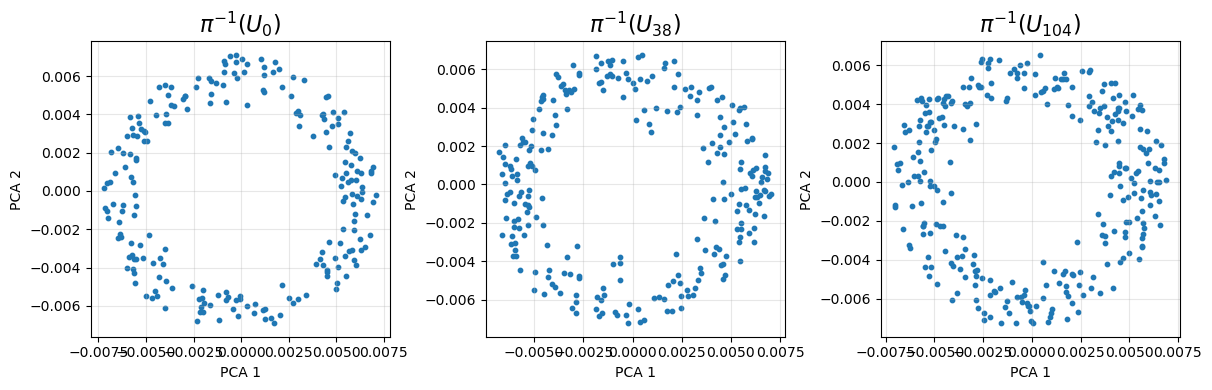

View PCA projections of the fibers of the lifted base map:

fig, axes = cb.get_local_pca(data = data,
                             U = s2_cover.U,
                             to_view = [0, 38, 104]
                             )
plt.show()
../../_images/5e317afedc457d28ecdf354f165e19a8f5392651a9b29894861cfa38be22bc15.png

Compute local trivializations, approximate transition matrices and characteristic classes:

s2_bundle = cb.Bundle(data, U = s2_cover.U)
s2_triv_result = s2_bundle.get_local_trivs()
s2_class_result = s2_bundle.get_classes(show_classes = True)
\[\begin{split}\displaystyle \begin{aligned}\textbf{Characteristic Classes} & \\[8pt]\quad \text{Stiefel--Whitney} &:\quad w_1 = 0\ (\text{orientable})\\[4pt]\quad \text{Euler} &:\quad \pm 10\ (\text{spin})\end{aligned}\end{split}\]

From the characteristic class computation above, we can infer that the dataset is concentrated around a 3-manifold in \(\mathbb{R}^{32^{3}}\) homeomorphic to the lens space \(L(10,1)\).
